Recycling

Ecostar

Ecostar

This walking floor trailer has been specially developed for transporting heavy waste. When other walking floor trailers are too light for the job, the Ecostar takes over. Durability is guaranteed, whatever type of waste that you transport thanks to its 100% automatically welded frame and structure.

Features

Type Walking floor trailers
Segment Recycling
Body aluminum
Chassis aluminum or steel
Use Biomass
Glass
Wood
Household waste
Paper
Recyclable plastic
Scrap
Volume 79m3 - 104m3

Volumes & dimensions

select one of the variations below to see the different volumes and dimensions.
This information is indicative, certain options and configurations will affect the final dimensions.

swipe for more

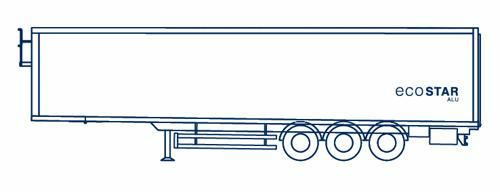

Straight front bulkhead, straight rear door
Straight front bulkhead, straight rear door
Volume
Internal length
mm
Inside height (front)
mm
Inside height (rear)
mm
Internal width
mm
79,9 13500 2285 2500 2475
86,5 13500 2500 2675 2475
89,4 13500 2550 2800 2475
91,5 13500 2650 2825 2475
91,6 13500 2630 2850 2475
92,7 13500 2625 2925 2475
93,6 13500 2700 2900 2475
94,9 13500 2660 3020 2475
98,3 (UK) 13500 2840 3045 2475
98,6 (UK) 13500 2850 3050 2475
103,9 (UK) 13500 3000 3220 2475
Volume (m³) 79,9
Internal length (mm) 13500
Inside height (front) (mm) 2285
Inside height (rear) (mm) 2500
Internal width (mm) 2475
Volume (m³) 86,5
Internal length (mm) 13500
Inside height (front) (mm) 2500
Inside height (rear) (mm) 2675
Internal width (mm) 2475
Volume (m³) 89,4
Internal length (mm) 13500
Inside height (front) (mm) 2550
Inside height (rear) (mm) 2800
Internal width (mm) 2475
Volume (m³) 91,5
Internal length (mm) 13500
Inside height (front) (mm) 2650
Inside height (rear) (mm) 2825
Internal width (mm) 2475
Volume (m³) 91,6
Internal length (mm) 13500
Inside height (front) (mm) 2630
Inside height (rear) (mm) 2850
Internal width (mm) 2475
Volume (m³) 92,7
Internal length (mm) 13500
Inside height (front) (mm) 2625
Inside height (rear) (mm) 2925
Internal width (mm) 2475
Volume (m³) 93,6
Internal length (mm) 13500
Inside height (front) (mm) 2700
Inside height (rear) (mm) 2900
Internal width (mm) 2475
Volume (m³) 94,9
Internal length (mm) 13500
Inside height (front) (mm) 2660
Inside height (rear) (mm) 3020
Internal width (mm) 2475
Volume (m³) 98,3 (UK)
Internal length (mm) 13500
Inside height (front) (mm) 2840
Inside height (rear) (mm) 3045
Internal width (mm) 2475
Volume (m³) 98,6 (UK)
Internal length (mm) 13500
Inside height (front) (mm) 2850
Inside height (rear) (mm) 3050
Internal width (mm) 2475
Volume (m³) 103,9 (UK)
Internal length (mm) 13500
Inside height (front) (mm) 3000
Inside height (rear) (mm) 3220
Internal width (mm) 2475
